Thermocouple Lead Wire VX‑G (PVC)
Model:VX-G (PVC)
Origin:Made in Korea

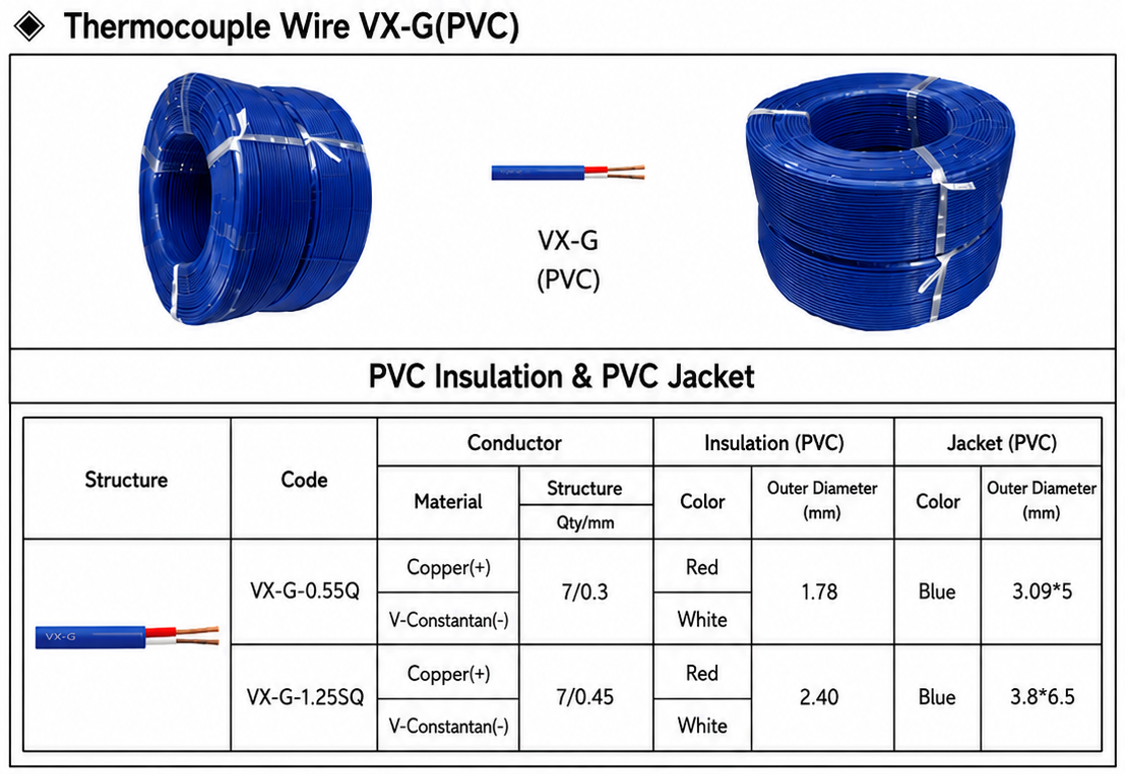

VX-G (PVC) Thermocouple Wire (PVC Insulated, PVC Sheathed)
Product Overview
VX‑G (PVC) Thermocouple Wire with PVC-insulated and PVC-jacketed construction, offering excellent insulation for temperature signal transmission.
Product Specifications
VX-G (PVC) Thermocouple Wire (PVC Insulated, PVC Sheathed)
Model | Conductor material | Conductor Structure | Insulation (PVC) Color | Insulation Outer Diameter (mm) | Jacket (PVC) Color | Outer Sheath Diameter (mm) |
|---|---|---|---|---|---|---|
VX-G-0.55Q | Copper (+) / Constantan (-) | 7/0.3 | Red / White | 1.78 | Blue | 3.09*5 |
VX-G-1.25SQ | Copper (+) / Constantan (-) | 7/0.45 | Red / White | 2.40 | Blue | 3.8*6.5 |
For products and specifications not listed in the table above, please contact us for more information.
※ Products and specifications not listed in the table above are available upon request.
※ For products and specifications not listed in the table above, please inquire separately.
Typical Use Cases
Industrial equipment temperature signal acquisition and thermometer signal transmission.
